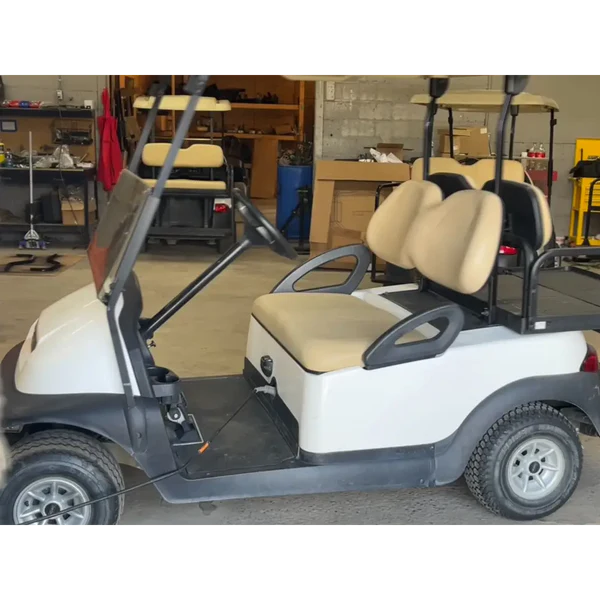

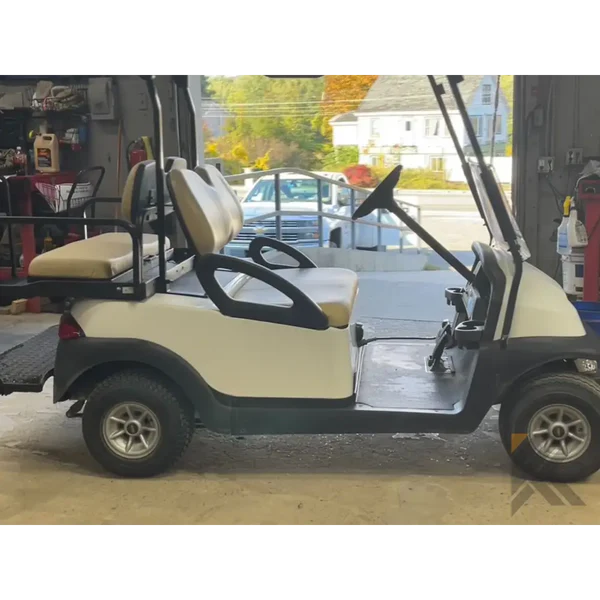

2012 Club Cart Precedent Electric

Specifications

Full dimensions: 9′ long, 52″ wide , 78″ high

Max load capacity:1200LBS

Motor: 4000watt

Battery: 6 pcs 8v battery , lithium battery available for upgrade

Charger: on board smart charger

Charging time: 5 hours

Brake: brake and parking brake

Frame and chassis: Steel with hydraulic dipping

Tire size: 23×10-14

ELECTRICAL

Battery

One, 12 V maintenance-free

ENGINE

Engine

EX1, 4 cycle, Single cylinder, OHC

Horsepower

11.5 hp (8.6 kW) J1995 standard

Displacement

150 cc (9.15 cu. in.)

Carburetion

Closed-loop electronic fuel injection

Starter

Pedal

Fuel Type

Gas

MEASUREMENTS

Length

Overall – 94.5 in. (240 cm)

Height

Overall (without roof) – 47.5 in. (121 cm)

Overall (with roof) – 70.0 in. (178 cm)

Width

Overall – 47.0 in. (119 cm)

Weight

Dry – 676 lb. (307 kg)

Curb – 692 lb. (314 kg)

Wheelbase

65.7 in. (167 cm)

Front wheel track – 35.5 in. (90 cm)

Rear wheel track – 38.0 in. (97 cm)

Ground Clearance

At differential – 4.0 in. (10 cm)

OPERATIONAL

Brakes

Service – Rear wheel mechanical self-adjusting drums

Parking – Self-compensating, single point engagement

Suspension

Front – Independent A-arm coil-over shock

Rear – Mono-leaf spring with hydraulic shocks

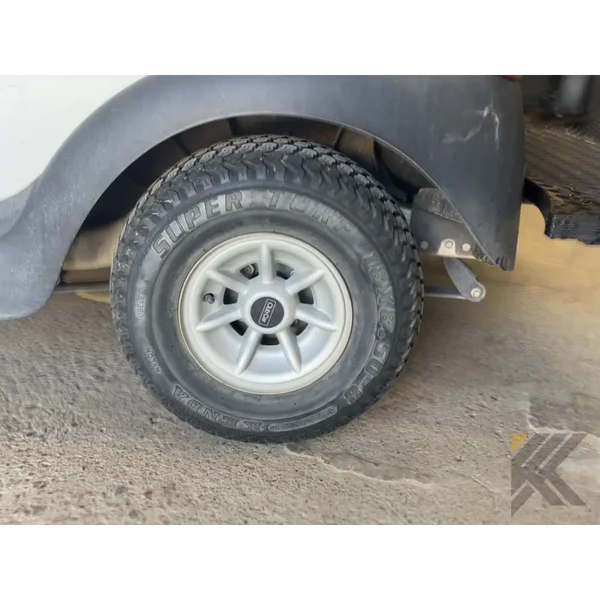

Tires

18 x 8.50-8 (4-ply rated)

Seating

Capacity – 2 passenger

Load Capacity

Vehicle – 500 – 800 lb. (227 – 360 kg)

Turning Radius

Outside clearance circle – 19.0 ft. (5.8 m)

Steering

Double-ended rack and pinion

Speed

Level ground – 12 mph ± 0.5 mph (19.3 kph ± 0.8 kph)
